Valve

Valves, Valve Seats, Valve GuidesRangeLimit

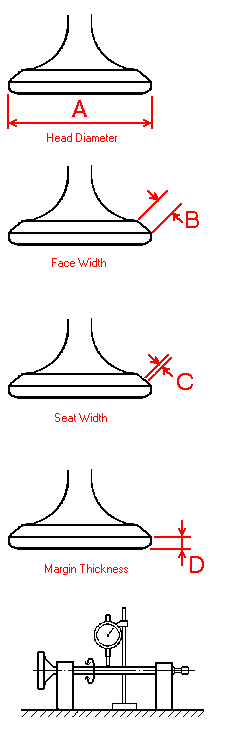

Valve dimensions diagram Valve Clearance(cold) Inlet 0.05-0.10mm 0.002-0.004in
Exhaust0.12-0.17mm 0.005-0.007in
"A" Head Diameter Inlet 35.9-36.1mm 1.413-1.421in
Exhaust30.9-31.1mm 1.217-1.224in
"B" Face Width Inlet 2.26mm 0.089in
Exhaust2.26mm 0.089in
"C" Seat Width Inlet 1.0-1.2mm 0.039-0.047in 2.0mm 0.080in
Exhaust1.0-1.2mm 0.039-0.047in 2.0mm 0.080in
"D" Margin Thickness Inlet 1.0-1.4mm 0.039-0.055in 0.7mm 0.028in
Exhaust0.8-1.2mm 0.031-0.047in 0.7mm 0.028in
Stem Outside Diameter Inlet 6.975-6.990mm 0.2746-0.2752in6.945mm0.273in
Exhaust6.955-6.970mm 0.2738-0.2744in6.915mm0.272in
Guide Inside Diameter Inlet 7.000-7.012mm 0.2756-0.2761in7.10mm 0.280in
Exhaust7.000-7.012mm 0.2756-0.2761in7.10mm 0.280in
Stem-to-guide ClearanceInlet 0.010-0.037mm 0.0004-0.0015in0.10mm 0.004in
Exhaust0.030-0.057mm 0.0012-0.0022in0.12mm 0.005in
Stem Runout Limit 0.01mm 0.0004in
